Synapse: a CV interface for the Elektron Analog Four

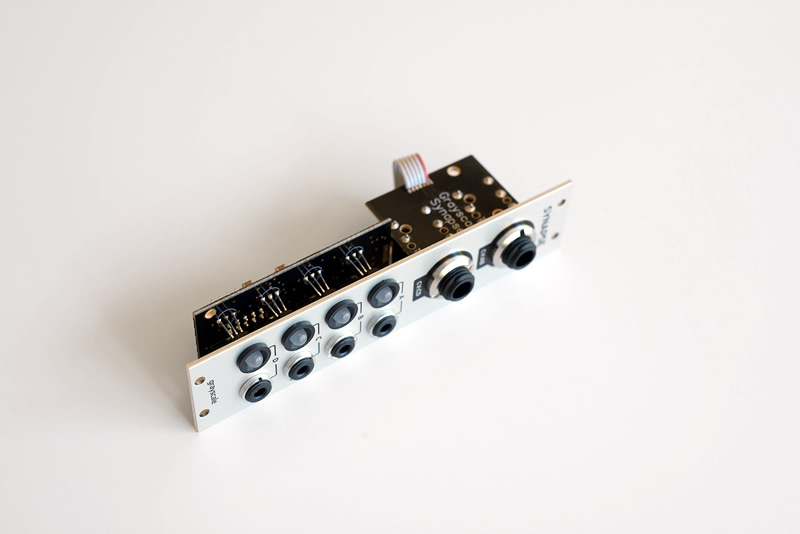

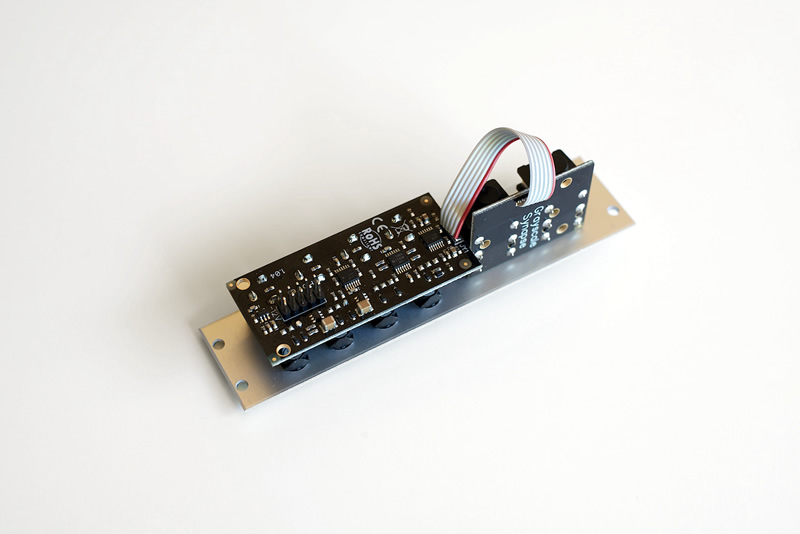

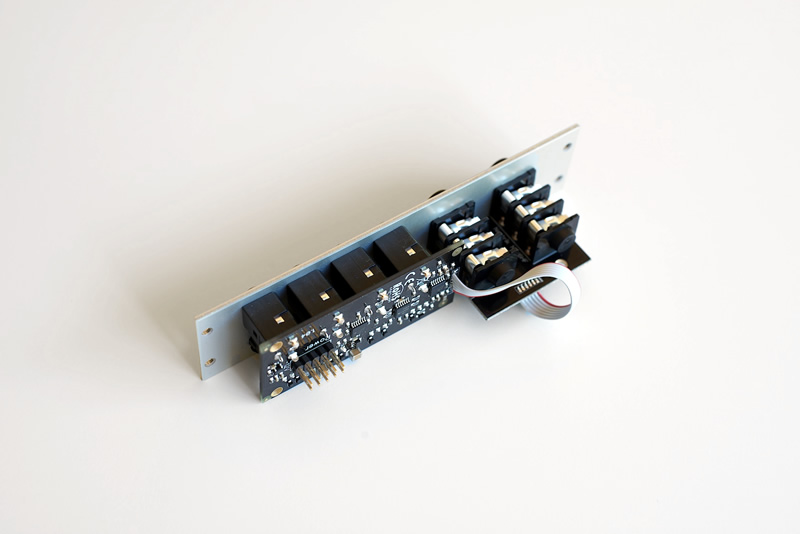

Synapse is a CV breakout module for the Elektron Analog Four MK1 and Analog Keys MK1. The two CV outputs of the A4/AK are connected to the 1/4" TRS inputs of the Synapse and routed to four separate 3.5mm outputs. Each output has its own bicolor LED to indicate the polarity and intensity of outgoing CV signals.

The full +/- 10V output range of the Analog Four and Analog Keys can be utilized, and unlike the A4/AK, the outputs of the Synapse are buffered to maintain pitch stability when sending CV signals to multiple destinations.

Synapse has also been tested and confirmed to work with the dual TRS CV outputs of the Keith McMillen QuNexus.


Specs

Width 6hp
Depth 30mm
Power 30ma (+12V) , 30ma (-12V)

Order Form

Synapse has sold out. Please check with dealers for additional inventory.


Downloads

User Manual: Grayscale_Synapse_manual.pdf
